Cloudnet AWES 6주차 스터디를 진행하며 정리한 글입니다.
이번 포스팅은 EKS에서 인증(Authentication), 인가 (Authorization), 어드미션 컨트롤 (Admission Control)에 대해 알아보겠습니다.
EKS)에서는 쿠버네티스 인증 인가를 AWS IAM(Identity and Access Management)과 연계하여 처리합니다.
이번 포스팅에서는 EKS에서 인증(Authentication) 및 인가(Authorization)이 어떻게 작동하는지 알아보겠습니다.
EKS Cluster Auth
EKS에서의 인증 (Authentication) / 인가(Authorization)
EKS에서 API 요청을 보낼 때, 기본적인 쿠버네티스 인증 방식(X.509 인증서, OIDC 등) 대신 AWS IAM을 기반으로 인증을 수행합니다.
IAM 인증이 완료되면, EKS는 RBAC을 사용하여 인가를 수행합니다.

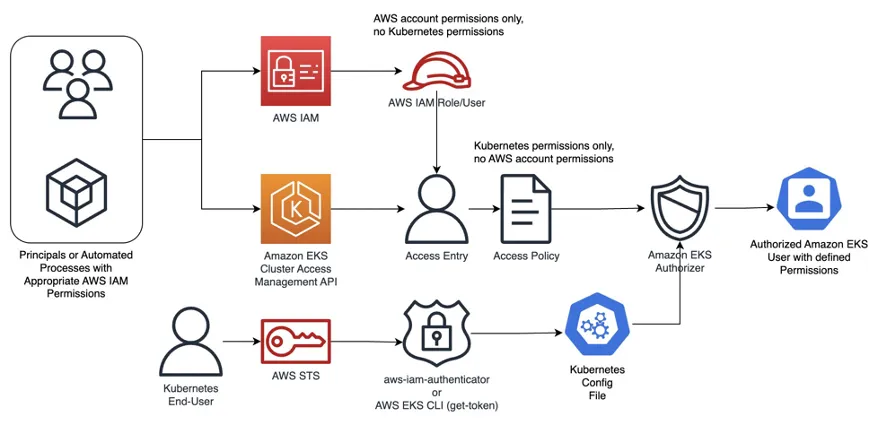

EKS API 서버 요청 시 인증/인가 Flow
- 사용자가 kubectl을 실행하여 EKS 클러스터에 요청을 보냄
- kubectl은 aws eks get-token을 통해 AWS STS(Security Token Service)에서 임시 인증 토큰을 요청
- AWS STS가 IAM 사용자 또는 IAM 역할을 인증하여 토큰을 발급
- kubectl이 API 서버에 요청을 보낼 때 해당 토큰을 포함(Bearer Token Pre-signed URL)
- API 서버는 aws-iam-authenticator를 사용하여 토큰의 유효성을 확인하고 사용자 인증 수행
- aws-iam-authenticator는 AWS IAM에서 사용자 검증을 요청하고, IAM User, Role ARN을 반환
- Configmap 방식일 경우
aws-auth configmap에서 IAM User, Role의 쿠버네티스 그룹 확인 - EKS API 방식일 경우
Access Entry로 쿠버네티스 그룹과 Access Policy 확인
- Configmap 방식일 경우
- 해당 과정을 통해 IAM(사용자)와 쿠버네티스 그룹을 연결하여 이 사용자가 어떤 그룹에 속하는지 요청한 사람이 누구인지 확인! -> 인증
- 인증이 완료된 사용자(IAM User 또는 Role ARN)가 aws-auth ConfigMap 또는 EKS API를 통해 특정 쿠버네티스 그룹(system:masters, system:authenticated 등)에 속하는지 확인
- RBAC(Role-Based Access Control) 정책을 기반으로 요청할 권한이 있는지 확인하여 요청 허용 또는 거부 -> 인가
++ 참고) 유용한 플러그인 설치
# 설치
kubectl krew install access-matrix rbac-tool rbac-view rolesum whoami
# k8s 인증된 주체 확인
kubectl whoami
arn:aws:iam::9~~0:user/admin
# RBAC access matrix
# default 네임스페이스 범위 접근 확인
kubectl access-matrix --namespace default
NAME LIST CREATE UPDATE DELETE
✖ ✖ ✖ ✖
✖ ✖ ✖ ✖
✖ ✖ ✖ ✖
✖ ✖ ✖ ✖
✖ ✖ ✖ ✖
✖ ✖ ✖ ✖
✖ ✖ ✖ ✖
✖ ✖ ✖ ✖
✖ ✖ ✖ ✖
✖ ✖ ✖ ✖
bindings ✔
configmaps ✔ ✔ ✔ ✔
controllerrevisions.apps ✔ ✔ ✔ ✔
cronjobs.batch ✔ ✔ ✔ ✔
csistoragecapacities.storage.k8s.io ✔ ✔ ✔ ✔
daemonsets.apps ✔ ✔ ✔ ✔
deployments.apps ✔ ✔ ✔ ✔
endpoints ✔ ✔ ✔ ✔
endpointslices.discovery.k8s.io ✔ ✔ ✔ ✔
events ✔ ✔ ✔ ✔
events.events.k8s.io ✔ ✔ ✔ ✔
horizontalpodautoscalers.autoscaling ✔ ✔ ✔ ✔
ingresses.networking.k8s.io ✔ ✔ ✔ ✔
jobs.batch ✔ ✔ ✔ ✔
leases.coordination.k8s.io ✔ ✔ ✔ ✔
limitranges ✔ ✔ ✔ ✔
localsubjectaccessreviews.authorization.k8s.io ✔
networkpolicies.networking.k8s.io ✔ ✔ ✔ ✔
persistentvolumeclaims ✔ ✔ ✔ ✔
poddisruptionbudgets.policy ✔ ✔ ✔ ✔
pods ✔ ✔ ✔ ✔
pods.metrics.k8s.io ✔
podtemplates ✔ ✔ ✔ ✔
policyendpoints.networking.k8s.aws ✔ ✔ ✔ ✔
replicasets.apps ✔ ✔ ✔ ✔
replicationcontrollers ✔ ✔ ✔ ✔
resourcequotas ✔ ✔ ✔ ✔
rolebindings.rbac.authorization.k8s.io ✔ ✔ ✔ ✔
roles.rbac.authorization.k8s.io ✔ ✔ ✔ ✔
secrets ✔ ✔ ✔ ✔
securitygrouppolicies.vpcresources.k8s.aws ✔ ✔ ✔ ✔
serviceaccounts ✔ ✔ ✔ ✔
services ✔ ✔ ✔ ✔
statefulsets.apps ✔ ✔ ✔ ✔
# subject 이름별로 RBAC 룩업
kubectl rbac-tool lookup system:masters
SUBJECT | SUBJECT TYPE | SCOPE | NAMESPACE | ROLE | BINDING
-----------------+--------------+-------------+-----------+---------------+----------------
system:masters | Group | ClusterRole | | cluster-admin | cluster-admin
# eks:node-bootstrapper 유저 ClusterRole 확인
kubectl describe ClusterRole eks:node-bootstrapper
Name: eks:node-bootstrapper
Labels: eks.amazonaws.com/component=node
Annotations: <none>
PolicyRule:
Resources Non-Resource URLs Resource Names Verbs
--------- ----------------- -------------- -----
certificatesigningrequests.certificates.k8s.io/selfnodeserver [] [] [create]
# 이 외의 다양한 명령어가 사용 가능
# Generate ClusterRole with all available permissions from the target cluster
kubectl rbac-tool show
# Shows the subject for the current context with which one authenticates with the cluster
kubectl rbac-tool whoami
# Summarize RBAC roles for subjects : ServiceAccount(default), User, Group
kubectl rolesum -h
EKS에서 인증 흐름 과정에 대해 명령어를 입력하며 확인해보겠습니다.
1) aws-auth configmap 방식
먼저 kubectl 명령어를 사용했을 때 aws eks get-token 명령어를 사용하여 STS에 토큰 요청합니다.
++) STS (Security Token Service)
- AWS 리소스에 대한 액세스를 제어할 수 있는 임시 보안 자격 증명(STS)을 생성하여 신뢰받는 사용자에게 제공할 수 있음
# sts caller id의 ARN 확인
❯ aws sts get-caller-identity --query Arn
"arn:aws:iam::94~~30:user/admin"
# kubeconfig 정보 확인
❯ cat ~/.kube/config
...
- name: arn:aws:eks:ap-northeast-2:94~~30:cluster/myeks
user:
exec:
apiVersion: client.authentication.k8s.io/v1beta1
args:
- --region
- ap-northeast-2
- eks
- get-token
- --cluster-name
- myeks
- --output
- json
command: aws
env: null
interactiveMode: IfAvailable
provideClusterInfo: false
# 임시 보안 자격 증명(토큰)을 요청 : expirationTimestamp 시간경과 시 토큰 재발급됨
❯ aws eks get-token --cluster-name $CLUSTER_NAME | jq
{
"kind": "ExecCredential",
"apiVersion": "client.authentication.k8s.io/v1beta1",
"spec": {},
"status": {
"expirationTimestamp": "2025-03-12T15:42:16Z",
"token": "k8s-aws-v1.aHR0cH~~ZTE"
}
}
kubectl의 client-go 라이브러리는 Pre-Signed URL을 Bearer Token으로 EKS API Cluster Endpoint로 요청을 보냅니다.
❯ aws eks get-token --cluster-name $CLUSTER_NAME --debug | jq
Action=GetCallerIdentity&
Version=2011-06-15&
X-Amz-Algorithm=AWS4-HMAC-SHA256&
X-Amz-Credential=AKI~~~~%2F20250312%2Fap-northeast-2%2Fsts%2Faws4_request&
X-Amz-Date=20250312T153126Z&
X-Amz-Expires=60&
X-Amz-SignedHeaders=host%3Bx-k8s-aws-id
EKS API는 Token Review 를 Webhook token authenticator에 요청합니다. (STS GetCallerIdentity 호출)
AWS IAM에서 해당 호출에 대한 인증이 완료되면 User/Role에 대한 ARN 반환합니다.
❯ kubectl api-resources | grep authentication
selfsubjectreviews authentication.k8s.io/v1 false SelfSubjectReview
tokenreviews authentication.k8s.io/v1 false TokenReview
❯ kubectl explain tokenreviews
GROUP: authentication.k8s.io
KIND: TokenReview
VERSION: v1
DESCRIPTION:
TokenReview attempts to authenticate a token to a known user. Note:
TokenReview requests may be cached by the webhook token authenticator plugin
in the kube-apiserver.
FIELDS:
...
이제 쿠버네티스 RBAC 인가를 처리합니다.
해당 IAM User/Role 확인이 되면 k8s aws-auth configmap에서 mapping 정보를 확인하게 됩니다. aws-auth 컨피그맵에 'IAM 사용자, 역할 arm, K8S 오브젝트' 로 권한 확인 후 k8s 인가 허가가 되면 최종적으로 동작 실행을 합니다.
(참고로 EKS를 생성한 IAM principal은 aws-auth 와 상관없이 kubernetes-admin Username으로 system:masters 그룹에 권한을 가집니다.)
❯ kubectl get cm -n kube-system aws-auth -o yaml ✘ INT ○ myeks 00:40:46
apiVersion: v1
data:
mapRoles: |
- groups:
- system:bootstrappers
- system:nodes
rolearn: arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7
username: system:node:{{EC2PrivateDNSName}}
kind: ConfigMap
metadata:
creationTimestamp: "2025-03-10T14:51:28Z"
name: aws-auth
namespace: kube-system
resourceVersion: "1986"
uid: d178a433-18af-48ee-a722-481189c01815
# [운영서버1]
kubectl rbac-tool whoami
{Username: "arn:aws:iam::941377114730:user/admin",
UID: "aws-iam-authenticator:941377114730:AIDA5WLTS2JVJR2Z4ZUJI",
Groups: ["system:authenticated"],
Extra: {accessKeyId: ["AKIA5WLTS2JVMTLRKB5F"],
arn: ["arn:aws:iam::941377114730:user/admin"],
canonicalArn: ["arn:aws:iam::941377114730:user/admin"],
principalId: ["AIDA5WLTS2JVJR2Z4ZUJI"],
sessionName: [""],
sigs.k8s.io/aws-iam-authenticator/principalId: ["AIDA5WLTS2JVJR2Z4ZUJI"]}}
kubectl describe clusterrolebindings.rbac.authorization.k8s.io cluster-admin
Name: cluster-admin
Labels: kubernetes.io/bootstrapping=rbac-defaults
Annotations: rbac.authorization.kubernetes.io/autoupdate: true
Role:
Kind: ClusterRole
Name: cluster-admin
Subjects:
Kind Name Namespace
---- ---- ---------
Group system:masters
kubectl describe clusterrole cluster-admin
Name: cluster-admin
Labels: kubernetes.io/bootstrapping=rbac-defaults
Annotations: rbac.authorization.kubernetes.io/autoupdate: true
PolicyRule:
Resources Non-Resource URLs Resource Names Verbs
--------- ----------------- -------------- -----
*.* [] [] [*]
[*] [] [*]
실습
이제 aws-auth configmap 사용해서 신규 사용자의 접근이 가능하도록 권한을 부여하겠습니다.
현재 사용하는 운영 환경 1은 기존 EKS 클러스터에 대한 설정이 모두 되어있는 노드이고, 운영 환경 2는 설정이 되어 있지 않은 점 참고 부탁드립니다.
### 운영서버 1에서 실행
aws iam create-user --user-name testuser
{
"User": {
"Path": "/",
"UserName": "testuser",
"UserId": "AIDA5WLTS2JVKMO7D6OK3",
"Arn": "arn:aws:iam::941377114730:user/testuser",
"CreateDate": "2025-03-12T15:57:47+00:00"
}
}
# 사용자에게 프로그래밍 방식 액세스 권한 부여
aws iam create-access-key --user-name testuser
{
"AccessKey": {
"UserName": "testuser",
"AccessKeyId": "AKIA5WLTS2JVDZVM73Q5",
"Status": "Active",
"SecretAccessKey": "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",
"CreateDate": "2025-03-12T15:58:05+00:00"
}
}
# testuser 사용자에 정책을 추가
aws iam attach-user-policy --policy-arn arn:aws:iam::aws:policy/AdministratorAccess --user-name testuser
# get-caller-identity 확인 - 현재는 user/admin
aws sts get-caller-identity --query Arn
"arn:aws:iam::941377114730:user/admin"
# 사용자 확인 - 현재는 user/admin
kubectl whoami
arn:aws:iam::941377114730:user/admin
# EC2 IP 확인 : myeks-bastion-EC2-2 PublicIPAdd 확인
aws ec2 describe-instances --query "Reservations[*].Instances[*].{PublicIPAdd:PublicIpAddress,PrivateIPAdd:PrivateIpAddress,InstanceName:Tags[?Key=='Name']|[0].Value,Status:State.Name}" --filters Name=instance-state-name,Values=running --output table
### 운영서버 2에서 실행
# get-caller-identity 확인 -> aws configure 하지 않아서 불러오지 못함
aws sts get-caller-identity --query Arn
Unable to locate credentials. You can configure credentials by running "aws configure".
# aws configure 설정
aws configure
AWS Access Key ID [None]: AWS Secret Access Key [None]: AKIA5WLTS2JVDZVM73Q5
Default region name [None]: ap-northeast-2
Default output format [None]: I6ECpVdmmewCc1zbiof7tFZ7gpN4VXID18COWJY4
# get-caller-identity 확인
aws sts get-caller-identity --query Arn
"arn:aws:iam::941377114730:user/testuser"
# 노드 조회 -> 실패 -> kubeconfig 없음
kubectl get node -v6
I0313 01:03:36.676550 48722 loader.go:395] Config loaded from file: /root/.kube/config
I0313 01:03:36.677820 48722 round_trippers.go:553] GET http://localhost:8080/api?timeout=32s in 0 milliseconds
E0313 01:03:36.677908 48722 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: Get \"http://localhost:8080/api?timeout=32s\": dial tcp 127.0.0.1:8080: connect: connection refused"
I0313 01:03:36.679066 48722 cached_discovery.go:120] skipped caching discovery info due to Get "http://localhost:8080/api?timeout=32s": dial tcp 127.0.0.1:8080: connect: connection refused
I0313 01:03:36.679532 48722 round_trippers.go:553] GET http://localhost:8080/api?timeout=32s in 0 milliseconds
E0313 01:03:36.679611 48722 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: Get \"http://localhost:8080/api?timeout=32s\": dial tcp 127.0.0.1:8080: connect: connection refused"
I0313 01:03:36.680756 48722 cached_discovery.go:120] skipped caching discovery info due to Get "http://localhost:8080/api?timeout=32s": dial tcp 127.0.0.1:8080: connect: connection refused
I0313 01:03:36.680805 48722 shortcut.go:103] Error loading discovery information: Get "http://localhost:8080/api?timeout=32s": dial tcp 127.0.0.1:8080: connect: connection refused
I0313 01:03:36.681532 48722 round_trippers.go:553] GET http://localhost:8080/api?timeout=32s in 0 milliseconds
E0313 01:03:36.681606 48722 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: Get \"http://localhost:8080/api?timeout=32s\": dial tcp 127.0.0.1:8080: connect: connection refused"
I0313 01:03:36.683003 48722 cached_discovery.go:120] skipped caching discovery info due to Get "http://localhost:8080/api?timeout=32s": dial tcp 127.0.0.1:8080: connect: connection refused
I0313 01:03:36.685580 48722 round_trippers.go:553] GET http://localhost:8080/api?timeout=32s in 2 milliseconds
E0313 01:03:36.685685 48722 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: Get \"http://localhost:8080/api?timeout=32s\": dial tcp 127.0.0.1:8080: connect: connection refused"
I0313 01:03:36.687389 48722 cached_discovery.go:120] skipped caching discovery info due to Get "http://localhost:8080/api?timeout=32s": dial tcp 127.0.0.1:8080: connect: connection refused
I0313 01:03:36.687888 48722 round_trippers.go:553] GET http://localhost:8080/api?timeout=32s in 0 milliseconds
E0313 01:03:36.687963 48722 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: Get \"http://localhost:8080/api?timeout=32s\": dial tcp 127.0.0.1:8080: connect: connection refused"
I0313 01:03:36.689141 48722 cached_discovery.go:120] skipped caching discovery info due to Get "http://localhost:8080/api?timeout=32s": dial tcp 127.0.0.1:8080: connect: connection refused
I0313 01:03:36.689197 48722 helpers.go:264] Connection error: Get http://localhost:8080/api?timeout=32s: dial tcp 127.0.0.1:8080: connect: connection refused
The connection to the server localhost:8080 was refused - did you specify the right host or port?
### 운영서버 1에서 동작
# IAM Role이나 유저를 쿠버네티스 유저나 롤과 매핑
eksctl get iamidentitymapping --cluster $CLUSTER_NAME
ARN USERNAME GROUPS ACCOUNT
arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7 system:node:{{EC2PrivateDNSName}} system:bootstrappers,system:nodes
eksctl create iamidentitymapping --cluster $CLUSTER_NAME --username testuser --group system:masters --arn arn:aws:iam::$ACCOUNT_ID:user/testuser
2025-03-13 01:07:47 [ℹ] checking arn arn:aws:iam::941377114730:user/testuser against entries in the auth ConfigMap
2025-03-13 01:07:47 [ℹ] adding identity "arn:aws:iam::941377114730:user/testuser" to auth ConfigMap
# 확인
# testuser가 매핑 되었음!
kubectl get cm -n kube-system aws-auth -o yaml
apiVersion: v1
data:
mapRoles: |
- groups:
- system:bootstrappers
- system:nodes
rolearn: arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7
username: system:node:{{EC2PrivateDNSName}}
mapUsers: |
- groups:
- system:masters
userarn: arn:aws:iam::941377114730:user/testuser
username: testuser
kind: ConfigMap
metadata:
creationTimestamp: "2025-03-10T14:51:28Z"
name: aws-auth
namespace: kube-system
resourceVersion: "735821"
uid: d178a433-18af-48ee-a722-481189c01815
### 운영서버 2에서 작업
# testuser kubeconfig 생성
CLUSTER_NAME=myeks
aws eks update-kubeconfig --name $CLUSTER_NAME --user-alias testuser
Added new context testuser to /root/.kube/config
# 이젠 노드 조회 가능!
kubectl get node -v6
I0313 01:09:51.197766 49261 loader.go:395] Config loaded from file: /root/.kube/config
I0313 01:09:52.113723 49261 round_trippers.go:553] GET https://8FA477A1B30E5E6D6E7473BD5FA8EA94.sk1.ap-northeast-2.eks.amazonaws.com/api/v1/nodes?limit=500 200 OK in 910 milliseconds
NAME STATUS ROLES AGE VERSION
ip-192-168-1-243.ap-northeast-2.compute.internal Ready <none> 2d1h v1.31.5-eks-5d632ec
ip-192-168-2-169.ap-northeast-2.compute.internal Ready <none> 2d1h v1.31.5-eks-5d632ec
ip-192-168-3-35.ap-northeast-2.compute.internal Ready <none> 2d1h v1.31.5-eks-5d632ec
# rbac-tool 후 확인
# 기존 aws-auth configmap에 testuser가 system:masters 그룹과 연결되었음
kubectl rbac-tool whoami
{Username: "testuser", # 기존과 다름
UID: "aws-iam-authenticator:941377114730:AIDA5WLTS2JVKMO7D6OK3",
Groups: ["system:masters", # 기존과 달리 추가됨
"system:authenticated"],
Extra: {accessKeyId: ["AKIA5WLTS2JVDZVM73Q5"],
arn: ["arn:aws:iam::941377114730:user/testuser"],
canonicalArn: ["arn:aws:iam::941377114730:user/testuser"],
principalId: ["AIDA5WLTS2JVKMO7D6OK3"],
sessionName: [""],
sigs.k8s.io/aws-iam-authenticator/principalId: ["AIDA5WLTS2JVKMO7D6OK3"]}}
### 운영서버 1에서 작업
# 방안2 : 아래 edit로 mapUsers 내용 직접 수정 system:authenticated
kubectl edit cm -n kube-system aws-auth
configmap/aws-auth edited
# 확인
eksctl get iamidentitymapping --cluster $CLUSTER_NAME
eksctl get iamidentitymapping --cluster $CLUSTER_NAME
ARN USERNAME GROUPS ACCOUNT
arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7 system:node:{{EC2PrivateDNSName}} system:bootstrappers,system:nodes
arn:aws:iam::941377114730:user/testuser testuser system:authenticated ## Group 변경 되었음
### 운영서버 2에서 작업
# 노드 조회 -> 아까는 되었지만 지금은 안됌! 권한이 없다.!
kubectl get node -v6
I0313 01:29:17.230933 49514 loader.go:395] Config loaded from file: /root/.kube/config
I0313 01:29:18.118500 49514 round_trippers.go:553] GET https://8FA477A1B30E5E6D6E7473BD5FA8EA94.sk1.ap-northeast-2.eks.amazonaws.com/api/v1/nodes?limit=500 403 Forbidden in 882 milliseconds
I0313 01:29:18.118773 49514 helpers.go:246] server response object: [{
"kind": "Status",
"apiVersion": "v1",
"metadata": {},
"status": "Failure",
"message": "nodes is forbidden: User \"testuser\" cannot list resource \"nodes\" in API group \"\" at the cluster scope",
"reason": "Forbidden",
"details": {
"kind": "nodes"
},
"code": 403
}]
Error from server (Forbidden): nodes is forbidden: User "testuser" cannot list resource "nodes" in API group "" at the cluster scope
kubectl api-resources -v5
kubectl api-resources -v5
NAME SHORTNAMES APIVERSION NAMESPACED KIND
bindings v1 true Binding
componentstatuses cs v1 false ComponentStatus
configmaps cm v1 true ConfigMap
endpoints ep v1 true Endpoints
events ev v1 true Event
limitranges limits v1 true LimitRange
namespaces ns v1 false Namespace
nodes no v1 false Node
persistentvolumeclaims pvc v1 true PersistentVolumeClaim
persistentvolumes pv v1 false PersistentVolume
pods po v1 true Pod
podtemplates v1 true PodTemplate
replicationcontrollers rc v1 true ReplicationController
resourcequotas quota v1 true ResourceQuota
secrets v1 true Secret
serviceaccounts sa v1 true ServiceAccount
services svc v1 true Service
mutatingwebhookconfigurations admissionregistration.k8s.io/v1 false MutatingWebhookConfiguration
validatingadmissionpolicies admissionregistration.k8s.io/v1 false ValidatingAdmissionPolicy
validatingadmissionpolicybindings admissionregistration.k8s.io/v1 false ValidatingAdmissionPolicyBinding
validatingwebhookconfigurations admissionregistration.k8s.io/v1 false ValidatingWebhookConfiguration
customresourcedefinitions crd,crds apiextensions.k8s.io/v1 false CustomResourceDefinition
apiservices apiregistration.k8s.io/v1 false APIService
controllerrevisions apps/v1 true ControllerRevision
daemonsets ds apps/v1 true DaemonSet
deployments deploy apps/v1 true Deployment
replicasets rs apps/v1 true ReplicaSet
statefulsets sts apps/v1 true StatefulSet
selfsubjectreviews authentication.k8s.io/v1 false SelfSubjectReview
tokenreviews authentication.k8s.io/v1 false TokenReview
localsubjectaccessreviews authorization.k8s.io/v1 true LocalSubjectAccessReview
selfsubjectaccessreviews authorization.k8s.io/v1 false SelfSubjectAccessReview
selfsubjectrulesreviews authorization.k8s.io/v1 false SelfSubjectRulesReview
subjectaccessreviews authorization.k8s.io/v1 false SubjectAccessReview
horizontalpodautoscalers hpa autoscaling/v2 true HorizontalPodAutoscaler
cronjobs cj batch/v1 true CronJob
jobs batch/v1 true Job
certificatesigningrequests csr certificates.k8s.io/v1 false CertificateSigningRequest
leases coordination.k8s.io/v1 true Lease
eniconfigs crd.k8s.amazonaws.com/v1alpha1 false ENIConfig
endpointslices discovery.k8s.io/v1 true EndpointSlice
events ev events.k8s.io/v1 true Event
flowschemas flowcontrol.apiserver.k8s.io/v1 false FlowSchema
prioritylevelconfigurations flowcontrol.apiserver.k8s.io/v1 false PriorityLevelConfiguration
nodes metrics.k8s.io/v1beta1 false NodeMetrics # False 임!!!
pods metrics.k8s.io/v1beta1 true PodMetrics
policyendpoints networking.k8s.aws/v1alpha1 true PolicyEndpoint
ingressclasses networking.k8s.io/v1 false IngressClass
ingresses ing networking.k8s.io/v1 true Ingress
networkpolicies netpol networking.k8s.io/v1 true NetworkPolicy
runtimeclasses node.k8s.io/v1 false RuntimeClass
poddisruptionbudgets pdb policy/v1 true PodDisruptionBudget
clusterrolebindings rbac.authorization.k8s.io/v1 false ClusterRoleBinding
clusterroles rbac.authorization.k8s.io/v1 false ClusterRole
rolebindings rbac.authorization.k8s.io/v1 true RoleBinding
roles rbac.authorization.k8s.io/v1 true Role
priorityclasses pc scheduling.k8s.io/v1 false PriorityClass
csidrivers storage.k8s.io/v1 false CSIDriver
csinodes storage.k8s.io/v1 false CSINode
csistoragecapacities storage.k8s.io/v1 true CSIStorageCapacity
storageclasses sc storage.k8s.io/v1 false StorageClass
volumeattachments storage.k8s.io/v1 false VolumeAttachment
volumeattributesclasses vac storage.k8s.io/v1beta1 false VolumeAttributesClass
cninodes cnd vpcresources.k8s.aws/v1alpha1 false CNINode
securitygrouppolicies sgp vpcresources.k8s.aws/v1beta1 true SecurityGroupPolicy
### 운영서버 1에서 작업
# testuser IAM 맵핑 삭제
eksctl delete iamidentitymapping --cluster $CLUSTER_NAME --arn arn:aws:iam::$ACCOUNT_ID:user/testuser
2025-03-13 01:31:34 [ℹ] removing identity "arn:aws:iam::941377114730:user/testuser" from auth ConfigMap (username = "testuser", groups = ["system:authenticated"])
# Get IAM identity mapping(s)
eksctl get iamidentitymapping --cluster $CLUSTER_NAME
ARN USERNAME GROUPS ACCOUNT
arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7 system:node:{{EC2PrivateDNSName}} system:bootstrappers,system:nodes
# aws-auth config 확인
kubectl get cm -n kube-system aws-auth -o yaml
apiVersion: v1
data:
mapRoles: |
- groups:
- system:bootstrappers
- system:nodes
rolearn: arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7
username: system:node:{{EC2PrivateDNSName}}
mapUsers: |
[]
kind: ConfigMap
metadata:
creationTimestamp: "2025-03-10T14:51:28Z"
name: aws-auth
namespace: kube-system
resourceVersion: "741719"
uid: d178a433-18af-48ee-a722-481189c01815
### 운영서버 2에서 작업
# 테스트
kubectl get node -v6
I0313 01:32:50.684922 49744 loader.go:395] Config loaded from file: /root/.kube/config
I0313 01:32:52.481866 49744 round_trippers.go:553] GET https://8FA477A1B30E5E6D6E7473BD5FA8EA94.sk1.ap-northeast-2.eks.amazonaws.com/api/v1/nodes?limit=500 401 Unauthorized in 1793 milliseconds
I0313 01:32:52.482190 49744 helpers.go:246] server response object: [{
"kind": "Status",
"apiVersion": "v1",
"metadata": {},
"status": "Failure",
"message": "Unauthorized",
"reason": "Unauthorized",
"code": 401
}]
error: You must be logged in to the server (Unauthorized)
kubectl api-resources -v5
E0313 01:33:08.793805 49798 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: the server has asked for the client to provide credentials"
I0313 01:33:08.794973 49798 cached_discovery.go:120] skipped caching discovery info due to the server has asked for the client to provide credentials
NAME SHORTNAMES APIVERSION NAMESPACED KIND
I0313 01:33:08.795216 49798 helpers.go:246] server response object: [{
"metadata": {},
"status": "Failure",
"message": "the server has asked for the client to provide credentials",
"reason": "Unauthorized",
"details": {
"causes": [
{
"reason": "UnexpectedServerResponse",
"message": "unknown"
}
]
},
"code": 401
}]
error: You must be logged in to the server (the server has asked for the client to provide credentials)
2) EKS API 방식
A deep dive into simplified Amazon EKS access management controls | Amazon Web Services
Introduction Since the initial Amazon Elastic Kubernetes Service (Amazon EKS) launch, it has supported AWS Identity and Access Management (AWS IAM) principals as entities that can authenticate against a cluster. This was done to remove the burden—from ad
aws.amazon.com

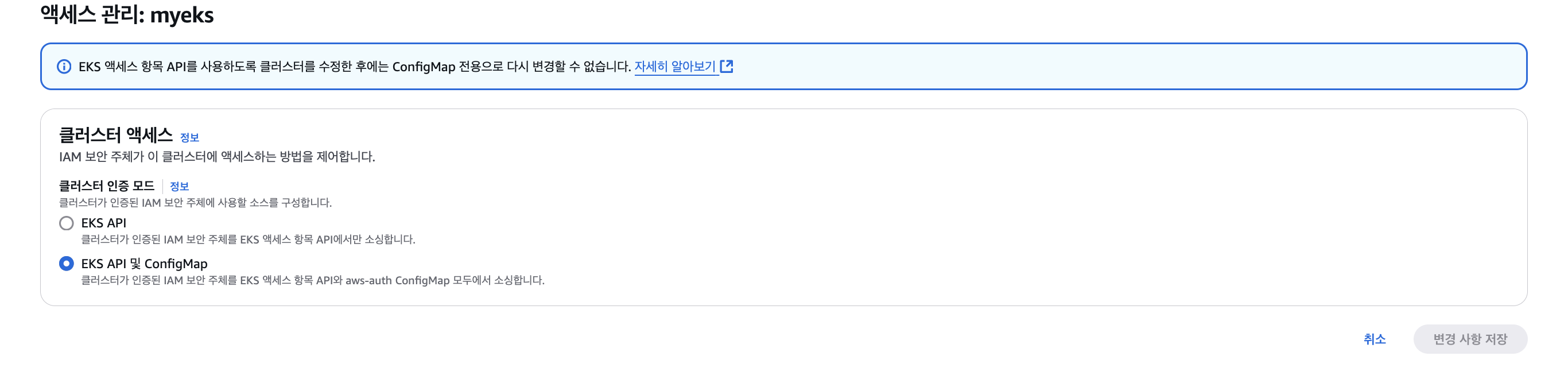

현재 EKS 클러스터의 액세스 관리에서 aws-auth configmap을 사용하고 있어서 EKS API 및 ConfigMap으로 되어있는데 이를 EKS API로 변경하여 위의 testuser 유저 생성하여 권한 테스트 하는 실습을 진행해보겠습니다.
참고로, EKS API 및 ConfigMap 정책 중복 시 EKS API 우선되며 ConfigMap은 무시됩니다.
### 운영서버 1에서 작업
# EKS API 액세스모드로 변경
aws eks update-cluster-config --name $CLUSTER_NAME --access-config authenticationMode=API
{
"update": {
"id": "0a320959-4460-3341-bd02-f93e7a08f9e3",
"status": "InProgress",
"type": "AccessConfigUpdate",
"params": [
{
"type": "AuthenticationMode",
"value": "\"API\"" # API로 변경
}
],
"createdAt": "2025-03-13T01:38:19.828000+09:00",
"errors": []
}
}
# 맵핑 클러스터롤 정보 확인
kubectl get clusterroles -l 'kubernetes.io/bootstrapping=rbac-defaults' | grep -v 'system:'
NAME CREATED AT
admin 2025-03-10T14:42:28Z
cluster-admin 2025-03-10T14:42:28Z
edit 2025-03-10T14:42:28Z
view 2025-03-10T14:42:28Z
aws eks list-access-entries --cluster-name $CLUSTER_NAME | jq
{
"accessEntries": [
"arn:aws:iam::941377114730:role/aws-service-role/eks.amazonaws.com/AWSServiceRoleForAmazonEKS",
"arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7",
"arn:aws:iam::941377114730:user/admin"
]
}
export ACCOUNT_ID=$(aws sts get-caller-identity --query 'Account' --output text)
aws eks list-associated-access-policies --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/admin | jq
{
"associatedAccessPolicies": [
{
"policyArn": "arn:aws:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy",
"accessScope": {
"type": "cluster",
"namespaces": []
},
"associatedAt": "2025-03-10T23:37:35.556000+09:00",
"modifiedAt": "2025-03-10T23:37:35.556000+09:00"
}
],
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:user/admin"
}
# 위에서 출력된 nodegroup IAM Role ARN 을 아래 입력 해서 실행
aws eks list-associated-access-policies --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7 | jq
{
"associatedAccessPolicies": [],
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7"
}
aws eks describe-access-entry --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/admin | jq
{
"accessEntry": {
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:user/admin",
"kubernetesGroups": [],
"accessEntryArn": "arn:aws:eks:ap-northeast-2:941377114730:access-entry/myeks/user/941377114730/admin/3ccac03e-b0a3-20c7-58d3-86adcdfd040f",
"createdAt": "2025-03-10T23:37:35.488000+09:00",
"modifiedAt": "2025-03-10T23:37:35.488000+09:00",
"tags": {},
"username": "arn:aws:iam::941377114730:user/admin",
"type": "STANDARD"
}
}
aws eks describe-access-entry --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7 | jq
{
"accessEntry": {
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7",
"kubernetesGroups": [
"system:nodes"
],
"accessEntryArn": "arn:aws:eks:ap-northeast-2:941377114730:access-entry/myeks/role/941377114730/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7/48cac045-0cc1-be8f-0445-c9cdc7e0ec4c",
"createdAt": "2025-03-10T23:51:29.117000+09:00",
"modifiedAt": "2025-03-10T23:51:29.117000+09:00",
"tags": {},
"username": "system:node:{{EC2PrivateDNSName}}",
"type": "EC2_LINUX"
}
}
### 운영서버 1에서 작업
testuser 의 access entry 생성
aws eks create-access-entry --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/testuser
{
"accessEntry": {
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:user/testuser",
"kubernetesGroups": [],
"accessEntryArn": "arn:aws:eks:ap-northeast-2:941377114730:access-entry/myeks/user/941377114730/testuser/e2cac5a2-0b64-5e47-c32e-7450f9949ea8",
"createdAt": "2025-03-13T01:50:50.225000+09:00",
"modifiedAt": "2025-03-13T01:50:50.225000+09:00",
"tags": {},
"username": "arn:aws:iam::941377114730:user/testuser",
"type": "STANDARD"
}
}
aws eks list-access-entries --cluster-name $CLUSTER_NAME | jq -r .accessEntries[]
arn:aws:iam::941377114730:role/aws-service-role/eks.amazonaws.com/AWSServiceRoleForAmazonEKS
arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7
arn:aws:iam::941377114730:user/admin
arn:aws:iam::941377114730:user/testuser
# testuser에 AmazonEKSClusterAdminPolicy 연동
aws eks associate-access-policy --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/testuser \
--policy-arn arn:aws:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy --access-scope type=cluster
{
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:user/testuser",
"associatedAccessPolicy": {
"policyArn": "arn:aws:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy",
"accessScope": {
"type": "cluster",
"namespaces": []
},
"associatedAt": "2025-03-13T01:52:09.106000+09:00",
"modifiedAt": "2025-03-13T01:52:09.106000+09:00"
}
}
aws eks list-associated-access-policies --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/testuser | jq
{
"associatedAccessPolicies": [
{
"policyArn": "arn:aws:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy",
"accessScope": {
"type": "cluster",
"namespaces": []
},
"associatedAt": "2025-03-13T01:52:09.106000+09:00",
"modifiedAt": "2025-03-13T01:52:09.106000+09:00"
}
],
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:user/testuser"
}
aws eks describe-access-entry --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/testuser | jq
{
"accessEntry": {
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:user/testuser",
"kubernetesGroups": [],
"accessEntryArn": "arn:aws:eks:ap-northeast-2:941377114730:access-entry/myeks/user/941377114730/testuser/e2cac5a2-0b64-5e47-c32e-7450f9949ea8",
"createdAt": "2025-03-13T01:50:50.225000+09:00",
"modifiedAt": "2025-03-13T01:50:50.225000+09:00",
"tags": {},
"username": "arn:aws:iam::941377114730:user/testuser",
"type": "STANDARD"
}
}
### 운영 서버 2에서 작업
# testuser 정보 확인
aws sts get-caller-identity --query Arn
"arn:aws:iam::941377114730:user/testuser"
kubectl whoami
arn:aws:iam::941377114730:user/testuser
# kubectl 시도
kubectl get node -v6
I0313 02:03:00.264590 50321 loader.go:395] Config loaded from file: /root/.kube/config
I0313 02:03:01.203633 50321 round_trippers.go:553] GET https://8FA477A1B30E5E6D6E7473BD5FA8EA94.sk1.ap-northeast-2.eks.amazonaws.com/api/v1/nodes?limit=500 200 OK in 934 milliseconds
NAME STATUS ROLES AGE VERSION
ip-192-168-1-243.ap-northeast-2.compute.internal Ready <none> 2d2h v1.31.5-eks-5d632ec
ip-192-168-2-169.ap-northeast-2.compute.internal Ready <none> 2d2h v1.31.5-eks-5d632ec
ip-192-168-3-35.ap-northeast-2.compute.internal Ready <none> 2d2h v1.31.5-eks-5d632ec
kubectl api-resources -v5
NAME SHORTNAMES APIVERSION NAMESPACED KIND
bindings v1 true Binding
componentstatuses cs v1 false ComponentStatus
configmaps cm v1 true ConfigMap
endpoints ep v1 true Endpoints
events ev v1 true Event
limitranges limits v1 true LimitRange
namespaces ns v1 false Namespace
nodes no v1 false Node
persistentvolumeclaims pvc v1 true PersistentVolumeClaim
persistentvolumes pv v1 false PersistentVolume
pods po v1 true Pod
podtemplates v1 true PodTemplate
replicationcontrollers rc v1 true ReplicationController
resourcequotas quota v1 true ResourceQuota
secrets v1 true Secret
serviceaccounts sa v1 true ServiceAccount
services svc v1 true Service
mutatingwebhookconfigurations admissionregistration.k8s.io/v1 false MutatingWebhookConfiguration
validatingadmissionpolicies admissionregistration.k8s.io/v1 false ValidatingAdmissionPolicy
validatingadmissionpolicybindings admissionregistration.k8s.io/v1 false ValidatingAdmissionPolicyBinding
validatingwebhookconfigurations admissionregistration.k8s.io/v1 false ValidatingWebhookConfiguration
customresourcedefinitions crd,crds apiextensions.k8s.io/v1 false CustomResourceDefinition
apiservices apiregistration.k8s.io/v1 false APIService
controllerrevisions apps/v1 true ControllerRevision
daemonsets ds apps/v1 true DaemonSet
deployments deploy apps/v1 true Deployment
replicasets rs apps/v1 true ReplicaSet
statefulsets sts apps/v1 true StatefulSet
selfsubjectreviews authentication.k8s.io/v1 false SelfSubjectReview
tokenreviews authentication.k8s.io/v1 false TokenReview
localsubjectaccessreviews authorization.k8s.io/v1 true LocalSubjectAccessReview
selfsubjectaccessreviews authorization.k8s.io/v1 false SelfSubjectAccessReview
selfsubjectrulesreviews authorization.k8s.io/v1 false SelfSubjectRulesReview
subjectaccessreviews authorization.k8s.io/v1 false SubjectAccessReview
horizontalpodautoscalers hpa autoscaling/v2 true HorizontalPodAutoscaler
cronjobs cj batch/v1 true CronJob
jobs batch/v1 true Job
certificatesigningrequests csr certificates.k8s.io/v1 false CertificateSigningRequest
leases coordination.k8s.io/v1 true Lease
eniconfigs crd.k8s.amazonaws.com/v1alpha1 false ENIConfig
endpointslices discovery.k8s.io/v1 true EndpointSlice
events ev events.k8s.io/v1 true Event
flowschemas flowcontrol.apiserver.k8s.io/v1 false FlowSchema
prioritylevelconfigurations flowcontrol.apiserver.k8s.io/v1 false PriorityLevelConfiguration
nodes metrics.k8s.io/v1beta1 false NodeMetrics
pods metrics.k8s.io/v1beta1 true PodMetrics
policyendpoints networking.k8s.aws/v1alpha1 true PolicyEndpoint
ingressclasses networking.k8s.io/v1 false IngressClass
ingresses ing networking.k8s.io/v1 true Ingress
networkpolicies netpol networking.k8s.io/v1 true NetworkPolicy
runtimeclasses node.k8s.io/v1 false RuntimeClass
poddisruptionbudgets pdb policy/v1 true PodDisruptionBudget
clusterrolebindings rbac.authorization.k8s.io/v1 false ClusterRoleBinding
clusterroles rbac.authorization.k8s.io/v1 false ClusterRole
rolebindings rbac.authorization.k8s.io/v1 true RoleBinding
roles rbac.authorization.k8s.io/v1 true Role
priorityclasses pc scheduling.k8s.io/v1 false PriorityClass
csidrivers storage.k8s.io/v1 false CSIDriver
csinodes storage.k8s.io/v1 false CSINode
csistoragecapacities storage.k8s.io/v1 true CSIStorageCapacity
storageclasses sc storage.k8s.io/v1 false StorageClass
volumeattachments storage.k8s.io/v1 false VolumeAttachment
volumeattributesclasses vac storage.k8s.io/v1beta1 false VolumeAttributesClass
cninodes cnd vpcresources.k8s.aws/v1alpha1 false CNINode
securitygrouppolicies sgp vpcresources.k8s.aws/v1beta1 true SecurityGroupPolicy
kubectl rbac-tool whoami
{Username: "arn:aws:iam::941377114730:user/testuser",
UID: "aws-iam-authenticator:941377114730:AIDA5WLTS2JVKMO7D6OK3",
Groups: ["system:authenticated"],
Extra: {accessKeyId: ["AKIA5WLTS2JVDZVM73Q5"],
arn: ["arn:aws:iam::941377114730:user/testuser"],
canonicalArn: ["arn:aws:iam::941377114730:user/testuser"],
principalId: ["AIDA5WLTS2JVKMO7D6OK3"],
sessionName: [""],
sigs.k8s.io/aws-iam-authenticator/principalId: ["AIDA5WLTS2JVKMO7D6OK3"]}}
https://catalog.workshops.aws/eks-immersionday/en-US/access-management/3-kubernetes-groups
EKS Advanced Workshop
catalog.workshops.aws
# 기존 testuser access entry 제거
aws eks delete-access-entry --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/testuser
aws eks list-access-entries --cluster-name $CLUSTER_NAME | jq -r .accessEntries[]
arn:aws:iam::941377114730:role/aws-service-role/eks.amazonaws.com/AWSServiceRoleForAmazonEKS
arn:aws:iam::941377114730:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-FZUyvVNlBcW7
arn:aws:iam::941377114730:user/admin
cat <<EoF> ~/pod-viewer-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: pod-viewer-role
rules:
- apiGroups: [""]
resources: ["pods"]
verbs: ["list", "get", "watch"]
EoF
cat <<EoF> ~/pod-admin-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: pod-admin-role
rules:
- apiGroups: [""]
resources: ["pods"]
verbs: ["*"]
EoF
kubectl apply -f ~/pod-viewer-role.yaml
clusterrole.rbac.authorization.k8s.io/pod-viewer-role created
kubectl apply -f ~/pod-admin-role.yaml
clusterrole.rbac.authorization.k8s.io/pod-admin-role created
# ClusterRole 바인딩
kubectl create clusterrolebinding viewer-role-binding --clusterrole=pod-viewer-role --group=pod-viewer
clusterrolebinding.rbac.authorization.k8s.io/viewer-role-binding created
kubectl create clusterrolebinding admin-role-binding --clusterrole=pod-admin-role --group=pod-admin
clusterrolebinding.rbac.authorization.k8s.io/admin-role-binding created
# access-entry 생성
aws eks create-access-entry --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/testuser --kubernetes-group pod-viewer
{
"accessEntry": {
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:user/testuser",
"kubernetesGroups": [
"pod-viewer"
],
"accessEntryArn": "arn:aws:eks:ap-northeast-2:941377114730:access-entry/myeks/user/941377114730/testuser/c4cac5a9-f25e-ad76-9e0b-362df889e96f",
"createdAt": "2025-03-13T02:08:06.014000+09:00",
"modifiedAt": "2025-03-13T02:08:06.014000+09:00",
"tags": {},
"username": "arn:aws:iam::941377114730:user/testuser",
"type": "STANDARD"
}
}
# access-entry 조회 및 확인
aws eks list-associated-access-policies --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/testuser
{
"associatedAccessPolicies": [],
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:user/testuser"
}
aws eks describe-access-entry --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/testuser | jq
{
"accessEntry": {
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:user/testuser",
"kubernetesGroups": [
"pod-viewer" # 확인
],
"accessEntryArn": "arn:aws:eks:ap-northeast-2:941377114730:access-entry/myeks/user/941377114730/testuser/c4cac5a9-f25e-ad76-9e0b-362df889e96f",
"createdAt": "2025-03-13T02:08:06.014000+09:00",
"modifiedAt": "2025-03-13T02:08:06.014000+09:00",
"tags": {},
"username": "arn:aws:iam::941377114730:user/testuser",
"type": "STANDARD"
}
}
### 운영서버 2에서 작업
# testuser 정보 확인
aws sts get-caller-identity --query Arn
"arn:aws:iam::941377114730:user/testuser"
kubectl whoami
arn:aws:iam::941377114730:user/testuser
# kubectl 시도
kubectl get pod -v6
kubectl get pod -v6
I0313 02:10:51.752821 50878 loader.go:395] Config loaded from file: /root/.kube/config
I0313 02:10:52.655198 50878 round_trippers.go:553] GET https://8FA477A1B30E5E6D6E7473BD5FA8EA94.sk1.ap-northeast-2.eks.amazonaws.com/api/v1/namespaces/default/pods?limit=500 200 OK in 897 milliseconds
NAME READY STATUS RESTARTS AGE
nginx 1/1 Running 0 25h
kubectl api-resources -v5
NAME SHORTNAMES APIVERSION NAMESPACED KIND
bindings v1 true Binding
componentstatuses cs v1 false ComponentStatus
configmaps cm v1 true ConfigMap
endpoints ep v1 true Endpoints
events ev v1 true Event
limitranges limits v1 true LimitRange
namespaces ns v1 false Namespace
nodes no v1 false Node
persistentvolumeclaims pvc v1 true PersistentVolumeClaim
persistentvolumes pv v1 false PersistentVolume
pods po v1 true Pod
podtemplates v1 true PodTemplate
replicationcontrollers rc v1 true ReplicationController
resourcequotas quota v1 true ResourceQuota
secrets v1 true Secret
serviceaccounts sa v1 true ServiceAccount
services svc v1 true Service
mutatingwebhookconfigurations admissionregistration.k8s.io/v1 false MutatingWebhookConfiguration
validatingadmissionpolicies admissionregistration.k8s.io/v1 false ValidatingAdmissionPolicy
validatingadmissionpolicybindings admissionregistration.k8s.io/v1 false ValidatingAdmissionPolicyBinding
validatingwebhookconfigurations admissionregistration.k8s.io/v1 false ValidatingWebhookConfiguration
customresourcedefinitions crd,crds apiextensions.k8s.io/v1 false CustomResourceDefinition
apiservices apiregistration.k8s.io/v1 false APIService
controllerrevisions apps/v1 true ControllerRevision
daemonsets ds apps/v1 true DaemonSet
deployments deploy apps/v1 true Deployment
replicasets rs apps/v1 true ReplicaSet
statefulsets sts apps/v1 true StatefulSet
selfsubjectreviews authentication.k8s.io/v1 false SelfSubjectReview
tokenreviews authentication.k8s.io/v1 false TokenReview
localsubjectaccessreviews authorization.k8s.io/v1 true LocalSubjectAccessReview
selfsubjectaccessreviews authorization.k8s.io/v1 false SelfSubjectAccessReview
selfsubjectrulesreviews authorization.k8s.io/v1 false SelfSubjectRulesReview
subjectaccessreviews authorization.k8s.io/v1 false SubjectAccessReview
horizontalpodautoscalers hpa autoscaling/v2 true HorizontalPodAutoscaler
cronjobs cj batch/v1 true CronJob
jobs batch/v1 true Job
certificatesigningrequests csr certificates.k8s.io/v1 false CertificateSigningRequest
leases coordination.k8s.io/v1 true Lease
eniconfigs crd.k8s.amazonaws.com/v1alpha1 false ENIConfig
endpointslices discovery.k8s.io/v1 true EndpointSlice
events ev events.k8s.io/v1 true Event
flowschemas flowcontrol.apiserver.k8s.io/v1 false FlowSchema
prioritylevelconfigurations flowcontrol.apiserver.k8s.io/v1 false PriorityLevelConfiguration
nodes metrics.k8s.io/v1beta1 false NodeMetrics
pods metrics.k8s.io/v1beta1 true PodMetrics
policyendpoints networking.k8s.aws/v1alpha1 true PolicyEndpoint
ingressclasses networking.k8s.io/v1 false IngressClass
ingresses ing networking.k8s.io/v1 true Ingress
networkpolicies netpol networking.k8s.io/v1 true NetworkPolicy
runtimeclasses node.k8s.io/v1 false RuntimeClass
poddisruptionbudgets pdb policy/v1 true PodDisruptionBudget
clusterrolebindings rbac.authorization.k8s.io/v1 false ClusterRoleBinding
clusterroles rbac.authorization.k8s.io/v1 false ClusterRole
rolebindings rbac.authorization.k8s.io/v1 true RoleBinding
roles rbac.authorization.k8s.io/v1 true Role
priorityclasses pc scheduling.k8s.io/v1 false PriorityClass
csidrivers storage.k8s.io/v1 false CSIDriver
csinodes storage.k8s.io/v1 false CSINode
csistoragecapacities storage.k8s.io/v1 true CSIStorageCapacity
storageclasses sc storage.k8s.io/v1 false StorageClass
volumeattachments storage.k8s.io/v1 false VolumeAttachment
volumeattributesclasses vac storage.k8s.io/v1beta1 false VolumeAttributesClass
cninodes cnd vpcresources.k8s.aws/v1alpha1 false CNINode
securitygrouppolicies sgp vpcresources.k8s.aws/v1beta1 true SecurityGroupPolicy
kubectl auth can-i get pods --all-namespaces
yes
kubectl auth can-i delete pods --all-namespaces
no
### 운영서버 1에서 작업
# kubernetesGroup 업데이트 적용
aws eks update-access-entry --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/testuser --kubernetes-group pod-admin | jq -r .accessEntry
{
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:user/testuser",
"kubernetesGroups": [
"pod-admin"
],
"accessEntryArn": "arn:aws:eks:ap-northeast-2:941377114730:access-entry/myeks/user/941377114730/testuser/c4cac5a9-f25e-ad76-9e0b-362df889e96f",
"createdAt": "2025-03-13T02:08:06.014000+09:00",
"modifiedAt": "2025-03-13T02:12:16.228000+09:00",
"tags": {},
"username": "arn:aws:iam::941377114730:user/testuser",
"type": "STANDARD"
}
aws eks describe-access-entry --cluster-name $CLUSTER_NAME --principal-arn arn:aws:iam::$ACCOUNT_ID:user/testuser | jq
{
"accessEntry": {
"clusterName": "myeks",
"principalArn": "arn:aws:iam::941377114730:user/testuser",
"kubernetesGroups": [
"pod-admin" # 변경
],
"accessEntryArn": "arn:aws:eks:ap-northeast-2:941377114730:access-entry/myeks/user/941377114730/testuser/c4cac5a9-f25e-ad76-9e0b-362df889e96f",
"createdAt": "2025-03-13T02:08:06.014000+09:00",
"modifiedAt": "2025-03-13T02:12:16.228000+09:00",
"tags": {},
"username": "arn:aws:iam::941377114730:user/testuser",
"type": "STANDARD"
}
}
### 운영서버 2에서 작업
# testuser 정보 확인
aws sts get-caller-identity --query Arn
"arn:aws:iam::941377114730:user/testuser"
kubectl whoami
arn:aws:iam::941377114730:user/testuser
# kubectl 시도
kubectl get pod -v6
I0313 02:13:34.443859 51414 loader.go:395] Config loaded from file: /root/.kube/config
I0313 02:13:35.355461 51414 round_trippers.go:553] GET https://8FA477A1B30E5E6D6E7473BD5FA8EA94.sk1.ap-northeast-2.eks.amazonaws.com/api/v1/namespaces/default/pods?limit=500 200 OK in 904 milliseconds
NAME READY STATUS RESTARTS AGE
nginx 1/1 Running 0 25h
kubectl api-resources -v5
NAME SHORTNAMES APIVERSION NAMESPACED KIND
bindings v1 true Binding
componentstatuses cs v1 false ComponentStatus
configmaps cm v1 true ConfigMap
endpoints ep v1 true Endpoints
events ev v1 true Event
limitranges limits v1 true LimitRange
namespaces ns v1 false Namespace
nodes no v1 false Node
persistentvolumeclaims pvc v1 true PersistentVolumeClaim
persistentvolumes pv v1 false PersistentVolume
pods po v1 true Pod
podtemplates v1 true PodTemplate
replicationcontrollers rc v1 true ReplicationController
resourcequotas quota v1 true ResourceQuota
secrets v1 true Secret
serviceaccounts sa v1 true ServiceAccount
services svc v1 true Service
mutatingwebhookconfigurations admissionregistration.k8s.io/v1 false MutatingWebhookConfiguration
validatingadmissionpolicies admissionregistration.k8s.io/v1 false ValidatingAdmissionPolicy
validatingadmissionpolicybindings admissionregistration.k8s.io/v1 false ValidatingAdmissionPolicyBinding
validatingwebhookconfigurations admissionregistration.k8s.io/v1 false ValidatingWebhookConfiguration
customresourcedefinitions crd,crds apiextensions.k8s.io/v1 false CustomResourceDefinition
apiservices apiregistration.k8s.io/v1 false APIService
controllerrevisions apps/v1 true ControllerRevision
daemonsets ds apps/v1 true DaemonSet
deployments deploy apps/v1 true Deployment
replicasets rs apps/v1 true ReplicaSet
statefulsets sts apps/v1 true StatefulSet
selfsubjectreviews authentication.k8s.io/v1 false SelfSubjectReview
tokenreviews authentication.k8s.io/v1 false TokenReview
localsubjectaccessreviews authorization.k8s.io/v1 true LocalSubjectAccessReview
selfsubjectaccessreviews authorization.k8s.io/v1 false SelfSubjectAccessReview
selfsubjectrulesreviews authorization.k8s.io/v1 false SelfSubjectRulesReview
subjectaccessreviews authorization.k8s.io/v1 false SubjectAccessReview
horizontalpodautoscalers hpa autoscaling/v2 true HorizontalPodAutoscaler
cronjobs cj batch/v1 true CronJob
jobs batch/v1 true Job
certificatesigningrequests csr certificates.k8s.io/v1 false CertificateSigningRequest
leases coordination.k8s.io/v1 true Lease
eniconfigs crd.k8s.amazonaws.com/v1alpha1 false ENIConfig
endpointslices discovery.k8s.io/v1 true EndpointSlice
events ev events.k8s.io/v1 true Event
flowschemas flowcontrol.apiserver.k8s.io/v1 false FlowSchema
prioritylevelconfigurations flowcontrol.apiserver.k8s.io/v1 false PriorityLevelConfiguration
nodes metrics.k8s.io/v1beta1 false NodeMetrics
pods metrics.k8s.io/v1beta1 true PodMetrics
policyendpoints networking.k8s.aws/v1alpha1 true PolicyEndpoint
ingressclasses networking.k8s.io/v1 false IngressClass
ingresses ing networking.k8s.io/v1 true Ingress
networkpolicies netpol networking.k8s.io/v1 true NetworkPolicy
runtimeclasses node.k8s.io/v1 false RuntimeClass
poddisruptionbudgets pdb policy/v1 true PodDisruptionBudget
clusterrolebindings rbac.authorization.k8s.io/v1 false ClusterRoleBinding
clusterroles rbac.authorization.k8s.io/v1 false ClusterRole
rolebindings rbac.authorization.k8s.io/v1 true RoleBinding
roles rbac.authorization.k8s.io/v1 true Role
priorityclasses pc scheduling.k8s.io/v1 false PriorityClass
csidrivers storage.k8s.io/v1 false CSIDriver
csinodes storage.k8s.io/v1 false CSINode
csistoragecapacities storage.k8s.io/v1 true CSIStorageCapacity
storageclasses sc storage.k8s.io/v1 false StorageClass
volumeattachments storage.k8s.io/v1 false VolumeAttachment
volumeattributesclasses vac storage.k8s.io/v1beta1 false VolumeAttributesClass
cninodes cnd vpcresources.k8s.aws/v1alpha1 false CNINode
securitygrouppolicies sgp vpcresources.k8s.aws/v1beta1 true SecurityGroupPolicy
kubectl auth can-i get pods --all-namespaces
yes
kubectl auth can-i delete pods --all-namespaces
yes # 변경'스터디 > AEWS' 카테고리의 다른 글
| [AEWS] 7주차 AWS Fargate (0) | 2025.03.29 |
|---|---|
| [AEWS] 7주차 Terraform (0) | 2025.03.29 |
| [AEWS] 6주차 쿠버네티스 인증(Authentication) 인가(Authorization) 어드미션 컨트롤 (Admission Contro (0) | 2025.03.12 |
| [AEWS] 6주차 쿠버네티스 API Server 이해하기 (1) | 2025.03.12 |
| [AEWS] 6주차 Kubeconfig 이해하기 및 CSR을 통한 신규 인증서 발급 (0) | 2025.03.11 |
